Upgrade Your Boat Water System With Confidence
A reliable boat water system moves clean fresh water from a tank to the galley, head, shower, and other onboard outlets. For most cruising boats, that means a potable-water tank, supply lines, a pump, valves, fixtures, and often a water heater or filtration equipment.
If your water smells stale, pump pressure surges, fittings leak, or mold and algae keep returning, the system may need more than a quick repair. An upgrade can replace aging hose, improve water flow, add hot water, and make the plumbing easier to inspect and maintain.
A practical freshwater system upgrade should account for:
- Water storage – Tank capacity, material, mounting, fill, vent, and access for cleaning.
- Water delivery – A manual pump or electric pressure pump sized for the number of outlets and plumbing distance.
- Safe plumbing – Food-safe tubing, secure fittings, shutoff valves, and protected routing away from heat, chafe, and bilge water.
- Useful outlets – Galley faucets, head sinks, deck showers, and hot-water connections that match the pump’s capacity.
- Pressure and sanitation – Regulators for city-water hookups, proper head and holding-tank plumbing, and routine tank sanitation.
For a typical boat with a galley sink, head, and deck shower, a freshwater pump rated around 4 GPM is often a sensible starting point. The right setup still depends on pipe length, outlet demand, tank location, electrical capacity, and how much water your crew uses.
FCS Marine provides mobile marine service in South Florida, helping yacht owners inspect, repair, sanitize, and upgrade onboard water systems where their vessels are located.
Core Components of a Basic Boat Water System
Every onboard freshwater layout relies on a handful of core components working seamlessly together. When one link in the chain fails—whether it is a split supply hose, a sticking check valve, or a scaled-up pump diaphragm—the entire system loses pressure or water quality suffers.
The foundational building blocks of a marine freshwater plumbing system include:
- Storage Tanks: Rigid plastic, metal, or flexible bladders that store potable water onboard.
- Delivery Pumps: 12V or 24V DC electric diaphragm pumps (or manual pumps) that draw water from tanks and supply pressure to fixtures.
- Distribution Tubing: Food-grade semi-rigid piping or flexible hose carrying cold and hot water across bulkheads.
- Fixtures and Faucets: Galley taps, head basin faucets, and transom showers engineered for marine environments.
- Filtration & Purification: Carbon block filters, inline sediment traps, UV sterilizers, or desalinated water sources.

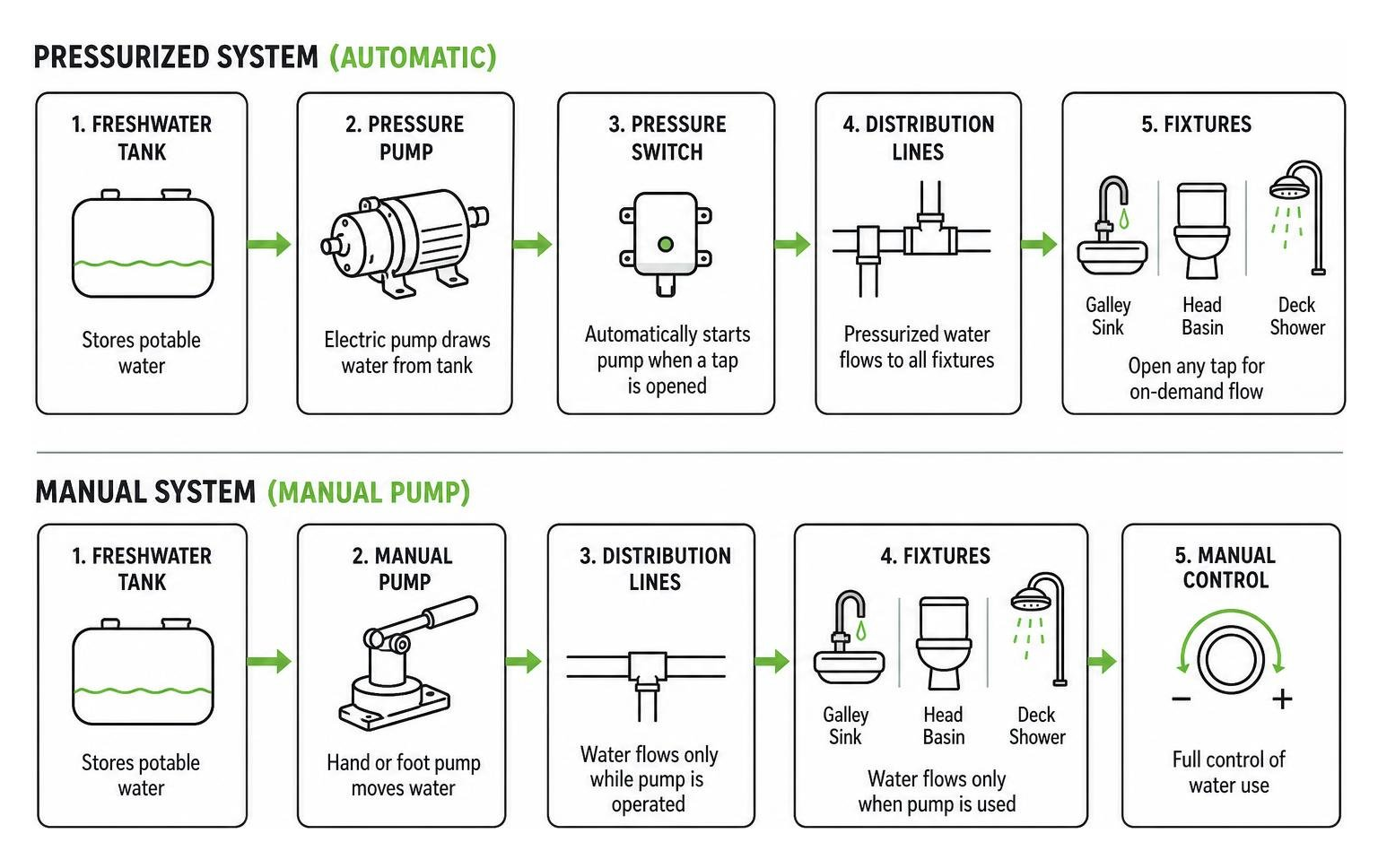

Pressurized vs. Manual Water Systems
When designing or upgrading your boat water system, one of the first major decisions is choosing between a fully pressurized automatic setup and a simple manual system.
- Pressurized Systems: An electric diaphragm pump maintains continuous pressure across all plumbing lines. Opening any tap automatically triggers an integrated pressure switch, supplying water on demand just like a residential home. This setup offers maximum convenience, making showers and dishwashing effortless. However, it relies on battery power and can quickly empty your freshwater storage if a leak goes unnoticed or a faucet is accidentally left cracked open.
- Manual Systems: Manual foot pumps or hand lever pumps move water only when physically operated. While less luxurious, manual pumps require zero electrical power and give the skipper precise control over water conservation.
For many cruising vessels, a hybrid layout is ideal. Installing an electric pressurized pump alongside a secondary galley foot pump allows for effortless living during weekend trips while preserving precious tankage on extended island crossings.
Choosing the Right Pump for Your Boat Water System
Selecting the correct electric pressure pump prevents erratic flow, noisy pulsing, and excessive electrical draw. Pumps are primarily rated by their flow capacity in gallons per minute (GPM) and maximum operating pressure (PSI).
Standard marine systems operate between 20 and 40 PSI. Because semi-rigid polyethylene (PE) marine tubing is typically rated up to 60 PSI, typical onboard pressures stay well within safe limits.
- 1 to 2 Outlets (Small Runabouts & Day Boats): A 2.0 to 3.0 GPM pump provides sufficient flow for a single galley tap or small head basin.
- 3 Outlets (Standard Cruising Boats): Most cruising boats feature no more than three primary outlets: galley sink, head basin, and deck shower. To maintain comfortable pressure when multiple fixtures are in use, choose a pump rated at 4.0 GPM or higher.
- 4+ Outlets (Large Yachts): For multiple heads, wet bars, and laundry appliances, select a high-capacity 5.0 to 6.0 GPM pump or a variable-speed smart pump.
Modern variable-speed diaphragm pumps automatically adjust motor speed to match demand. This eliminates the “woodpecker” noise of traditional pressure switches snapping on and off and reduces the need for a separate accumulator tank.
If your current pump continuously cycles, loses prime, or struggles to reach pressure, explore our professional Onboard Water System Service to restore steady flow across your vessel.
Selecting Materials for Tanks and Marine Piping
Choosing the right materials for potable water storage and distribution determines how long your system lasts and how clean your water tastes.
| Tank Material | Pros | Cons | Best Use Case |
|---|---|---|---|
| Rotomolded Polyethylene | 3/8″ thick seamless construction; zero corrosion; taste-free; light weight | Fixed rectangular or custom shapes required | Ideal choice for modern marine replacement tanks |
| 316 Stainless Steel | Highly durable; excellent structural rigidity; handles high internal pressure | Heavy; subject to weld seam pitting if exposed to stagnant bilge water | Custom built-in deep bilge tank installations |
| Aluminum | Lightweight; easily welded to match tight hull shapes | Corrodes easily in bilge environments; can impart a metallic taste | Not recommended for fresh potable water |
| Fiberglass (FRP) | Integrated directly into hull structure; maximizes space | Requires food-safe epoxy barrier coatings; prone to flavor leeching if aged | Built-in structural vessel storage tanks |
Seamless one-piece rotomolded polyethylene tanks meeting NSF 61 and FDA CFR 177.1520 standards are the industry standard for durability. If you are replacing an aged metal tank in South Florida, look for potable-water-rated replacement tanks with properly placed fill, vent, pickup, and inspection fittings that match the vessel’s existing compartment and plumbing layout.
PEX Tubing vs. PVC Hoses
When plumbing supply lines, vessel owners historically used clear flexible PVC hose secured with stainless steel band clamps. Today, semi-rigid cross-linked polyethylene (PEX) or PE color-coded tubing has largely replaced flexible hose in modern marine construction.
- Clear/Reinforced PVC Hose: Clear PVC hose allows sunlight to penetrate, quickly promoting algae and bacterial growth inside lines. Even when flushed with chlorine, dead algae residue leaves behind persistent bad odors and foul tastes. Flexible PVC also tends to kink around tight structural turns.
- PEX / PE Tubing: Semi-rigid color-coded PE tubing (red for hot, blue for cold) resists kinking, handles up to 60 PSI safely, and prevents light penetration to stop algae growth.
While push-to-connect quick-connect fittings (such as Whale Equal Tees) carry a higher initial unit price than basic nylon hose barbs, they do not require double-clamping with hose clamps. When factoring in the cost of six marine-grade stainless steel hose clamps per traditional nylon tee fitting, modern PEX quick-connect systems are often faster to install and comparable in total material cost.

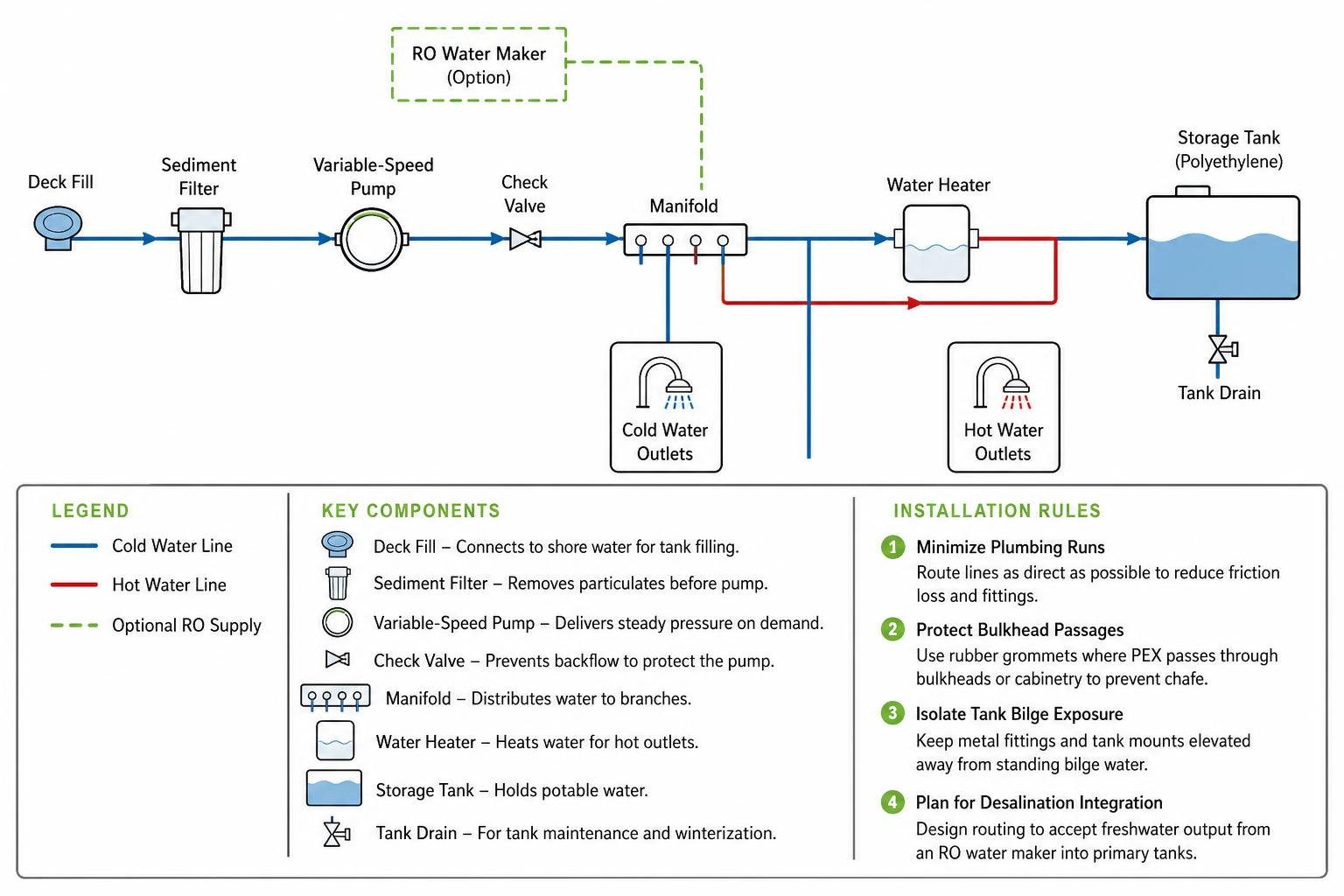

Planning and Mapping Your System Installation
Before cutting a single piece of pipe, draw a precise scale schematic of your boat’s layout. Map out the location of fresh water tanks, pumps, manifolds, water heaters, bulkheads, and deck fills.
Follow these installation rules:
- Minimize Plumbing Runs: Route lines as direct as possible to cut down on total friction loss and reduce fitting counts.
- Protect Bulkhead Passages: Use rubber grommets whenever PEX tubing passes through engine bulkheads or wooden cabinetry to prevent chafe from vessel vibration.
- Isolate Tank Bilge Exposure: Ensure metal fittings and tank mounts remain elevated away from standing bilge water.
- Plan for Desalination Integration: If cruising offshore, plan your pipe routing to accept freshwater output from a marine reverse osmosis (RO) water maker into your primary storage tanks.
Upgrading Boat Water System Outlets, Pressure Regulators, and Sanitation
Expanding an existing plumbing layout enhances life on the water, but adding deck showers, hot water heaters, or shore power water connections requires proper pressure regulation and backflow protection.
Dockside City Water Hookups and Pressure Safety
Connecting your vessel directly to a marina shore water tap provides unlimited fresh water without depleting onboard tankage or running your 12V pump. However, dockside municipal water pressures frequently range from 46 to 125 PSI—far exceeding standard marine plumbing limits of 40 PSI.
If connected directly without protection, a burst fitting can flood your cabin and sink the vessel at the dock.
To safely use shore water:
- Always install an inline, pressure-reducing regulator right at the hose inlet to restrict incoming supply pressure to a safe 45 PSI maximum.
- Turn off the dockside spigot whenever leaving the vessel unattended.
- Monitor shore supply quality through local municipal resources such as the Water Quality Division | St. Lucie County, FL .
Marine Toilet (Head) and Holding Tank Integration
Potable freshwater systems must remain entirely isolated from marine sanitation lines. Cross-contamination risks are prevented through proper check valves, physical air gaps, and anti-siphon vented loops.
When plumbing your marine head and black water holding tank:
- Vented Loops: Install vented loops high above the vessel waterline on both the intake and discharge lines of manual or electric heads to prevent sea siphoning.
- Y-Valves & Pump-Outs: Route head discharge into an approved Coast Guard-compliant holding tank. Use lockable Y-valves for offshore direct discharge outside the 3-nautical-mile limit.
- Pump-Out Compliance: Take advantage of local vessel pump-out services, such as the Martin Ship Pump Out Operation Program | Martin County Florida , to keep coastal waterways clean and avoid heavy environmental fines.
Upgrading Your Boat Water System with Heaters and Showers
Adding hot water turns a basic cruiser into an all-season vessel. Marine water heaters generally range from 6 to 11 gallons and utilize dual heat sources: an internal 120V AC electric heating element paired with an engine coolant heat exchanger coil.
When adding a water heater and deck shower:
- Install a thermostatically controlled anti-scald mixing valve at the heater outlet to extend usable hot water volume and prevent burns.
- Ensure your freshwater pump produces at least 4 GPM so water pressure stays balanced when mixing hot and cold streams at the shower head.
- Run dedicated greywater lines from shower basins into an automatic shower sump pump rather than draining dirty soap scum directly into the bilge.
Preventing Common Water System Problems
Routine care keeps your boat water system delivering odor-free, safe drinking water season after season.
Follow this checklist to avoid common operational issues:
- Eliminate Rotten Egg / Sulfur Odors: Hydrogen sulfide gas causes foul odors when water sits stagnant in tanks or reacts with corroding metal anodes in water heaters. Sanitize system lines annually using a mixture of 1/4 cup unscented household bleach per 15 gallons of water, or perform a white vinegar flush.
- Stop Continuous Pump Cycling: If your freshwater pump periodically pulses on and off when all faucets are tightly closed, you have a slow pressure leak. Inspect quick-connect joints, pump check valves, and city water inlets for minor drips.
- Install an Accumulator Tank: Adding a small pre-pressurized bladder accumulator tank right after the main pump cushions pressure spikes, smooths out faucet flow, and dramatically cuts down on pump cycling noise.
- Replace Inline Filters Seasonally: Swap out carbon block taste-and-odor sediment filters twice a year to maintain full line flow and catch debris before it clogs shower mixing valves.
Frequently Asked Questions About Boat Plumbing
What size water pump do I need for a 3-outlet boat water system?
For a typical boat with three outlets (galley tap, head basin, and transom deck shower), choose a marine diaphragm pump rated at 4.0 GPM or higher with a pressure cutoff around 35 to 40 PSI. This provides sufficient volume to supply multiple faucets simultaneously without severe pressure drops.
Why does my fresh water pump keep cycling on and off when faucets are closed?
Periodic pump cycling indicates a gradual pressure leak downstream of the pump. Common causes include a dripping faucet, a small weeping leak at a pipe fitting, a failing pump internal check valve allowing water to bleed back into the tank, or a leaking water heater relief valve.
Can I connect household faucets to my marine plumbing system?
Yes, standard residential domestic faucets can be installed on boats. However, because domestic fixtures often use 1/2-inch IPS male threaded connections while marine hoses vary between 1/2-inch PEX and 5/8-inch ID hose barbs, you will need the correct adapters or quick-connect fittings to ensure a leak-free connection.
Professional Marine Plumbing Upgrades and Service
A properly designed, leak-free boat water system brings peace of mind whether you are dockside in Fort Lauderdale or anchored off Palm Beach. If your vessel’s plumbing suffers from low pressure, mysterious leaks, tainted water, or failing pump hardware, let our experienced team help.
FCS Marine comes to where the vessel is located across South Florida, including Miami-Dade, Broward, Palm Beach, Martin, and St. Lucie counties. Our technicians handle complete freshwater system overhauls, tank replacements, pump upgrades, watermaker service, and marine climate control integration.
Explore our full range of vessel support on our Services page, or learn about our complete climate solutions with Marine Air Conditioning Support. Ready to fix leaks and restore pure drinking water onboard? Contact Us today to schedule on-site service at your marina or dock.
